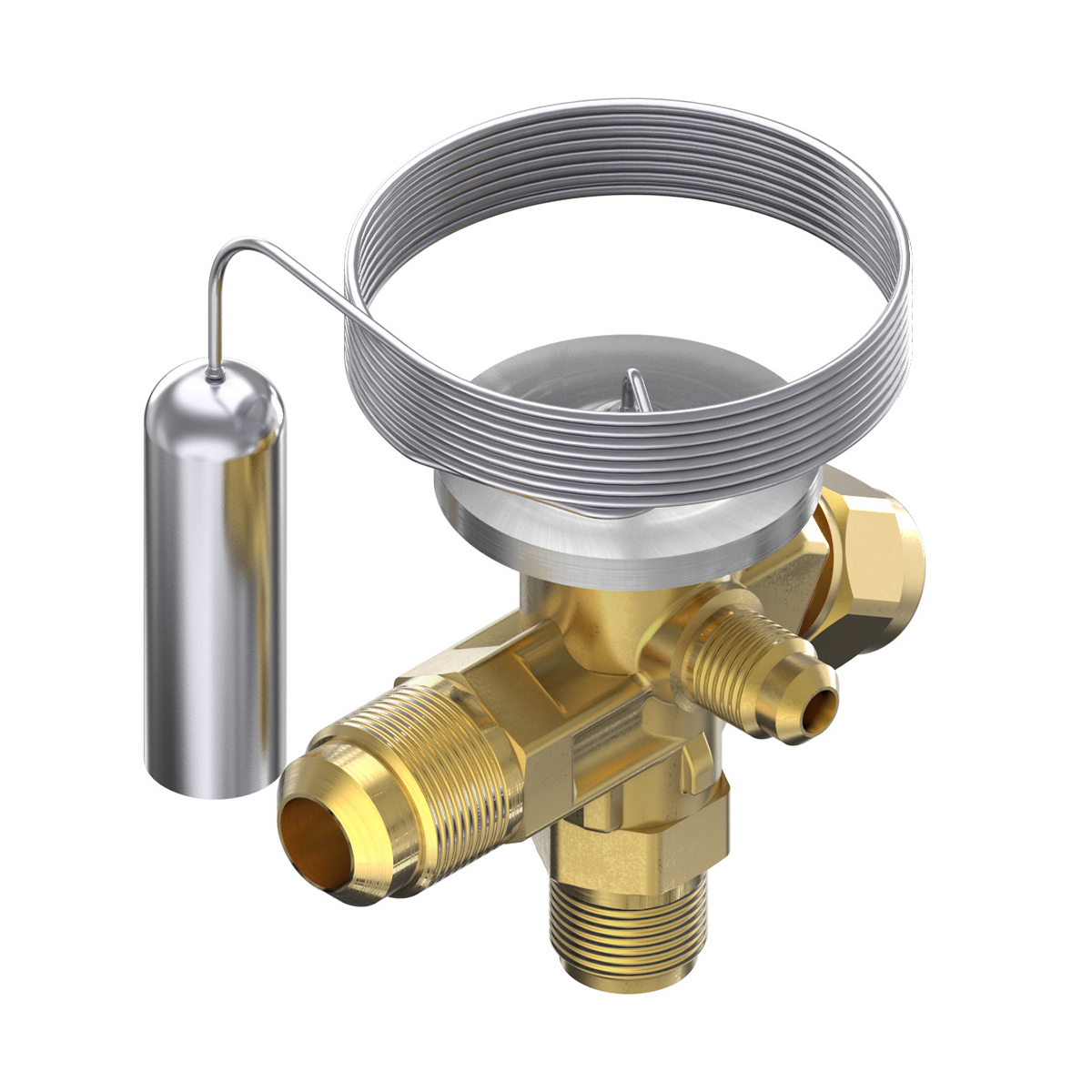

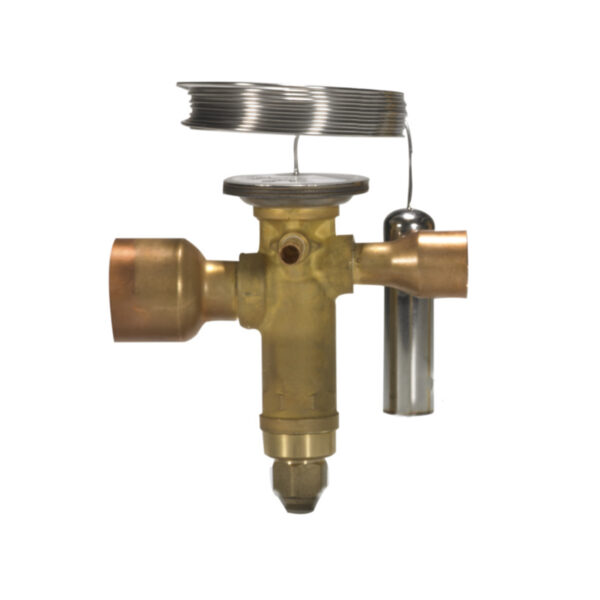

An Expansion valve is one of the most significant components in refrigeration and air conditioning systems that regulates the flow of refrigerant into the evaporator coil. Thermostatic expansion valves are widely used in commercial refrigeration plant construction, where they use compression refrigeration systems with dry expansion. They are used for optimum evaporator admission flow, and with varying load conditions.
- Interchangeable orifice assembly
- Can be supplied with MOP (Max. Operating Pressure)
- Stainless steel bulb and Danfoss patented bulb strap
- Equally applicable to freezing, refrigeration and air conditioning applications
- Compact design
Body Material | Brass |
Capillary Tube Length [mm] | 1500 mm |
Connection Material | Brass |
Direction | Angleway |
Inlet Size [in] | 3/8 in |
Outlet Size [in] | 1/2 in |
Temperature Range [°C] [Max] | 10 °C |
Temperature Range [°C] [Min] | -40 °C |
Connection Type | Flare/ Brazing |
