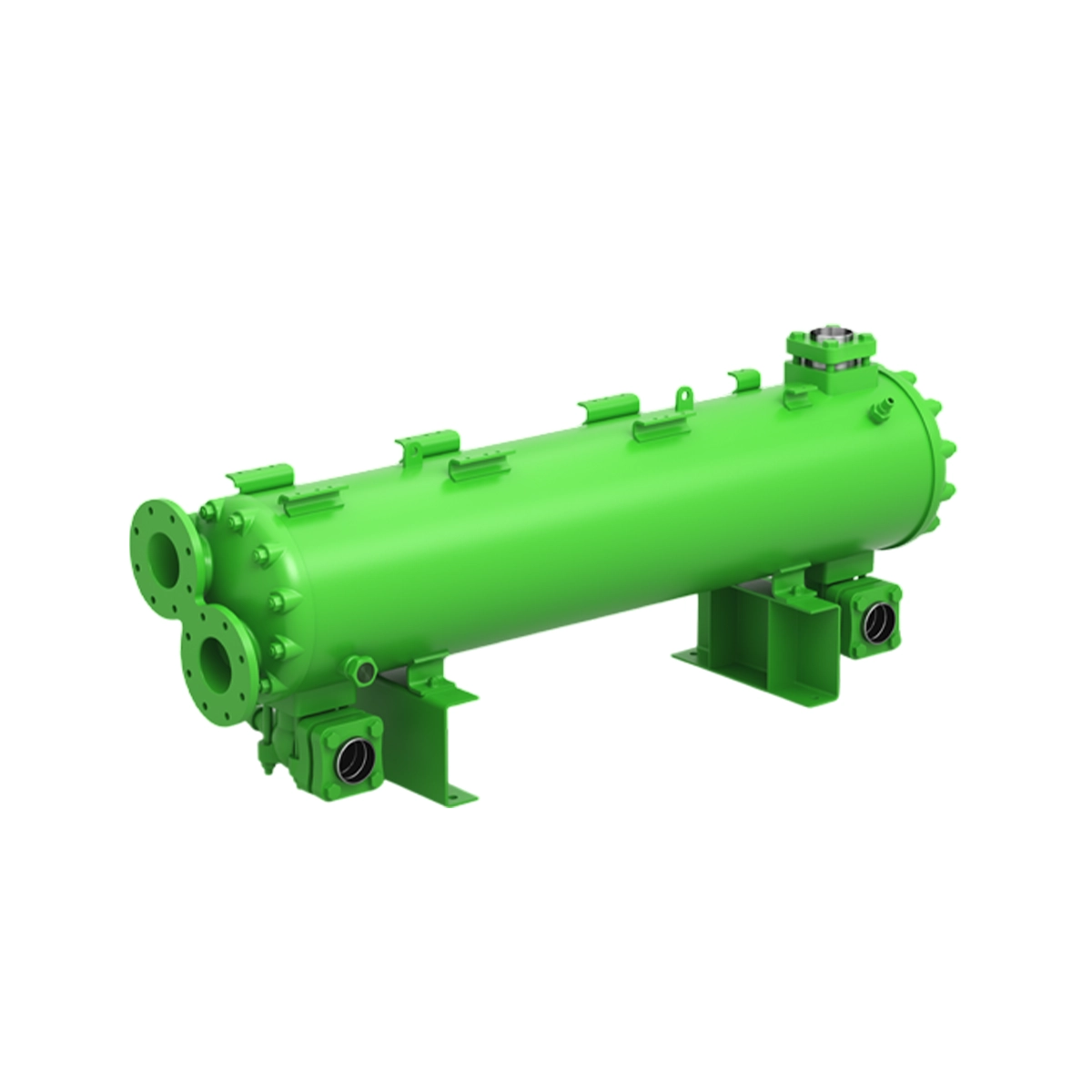

Suitable for all commonly used refrigerants (HFC, HFO, HFC/HFO blends) and including a version approved for use with hydrocarbons (propane, propylene), K condensers represent a standard and robust solution for all normal and technical water cooled applications. These condensers ensure excellent reliability thanks to the unique tube-brazing process and the coating of the tube sheets, while the use of a low-fouling design for the exchange tubes means that the condenser can deliver a consistent performance throughout its life.
- Condensing capacity range up to 1,000 kW
- Design pressure 33 bar
- Low-fouling water-side tube design
- Compact length (max. 1,800 mm)
- Applicable refrigerants- HFC, HFO, HFC/HFO blends, Hydrocarbons (propane, propylene)
Nominal condenser capacity at dTe=15K (2 pass) | 77.7 kW |
---|---|
Weight | 35 kg |
Max. pressure | 33 bar |
Max. Operating Temperature | 120°C |
Max pressure coolant side | 10 bar |
