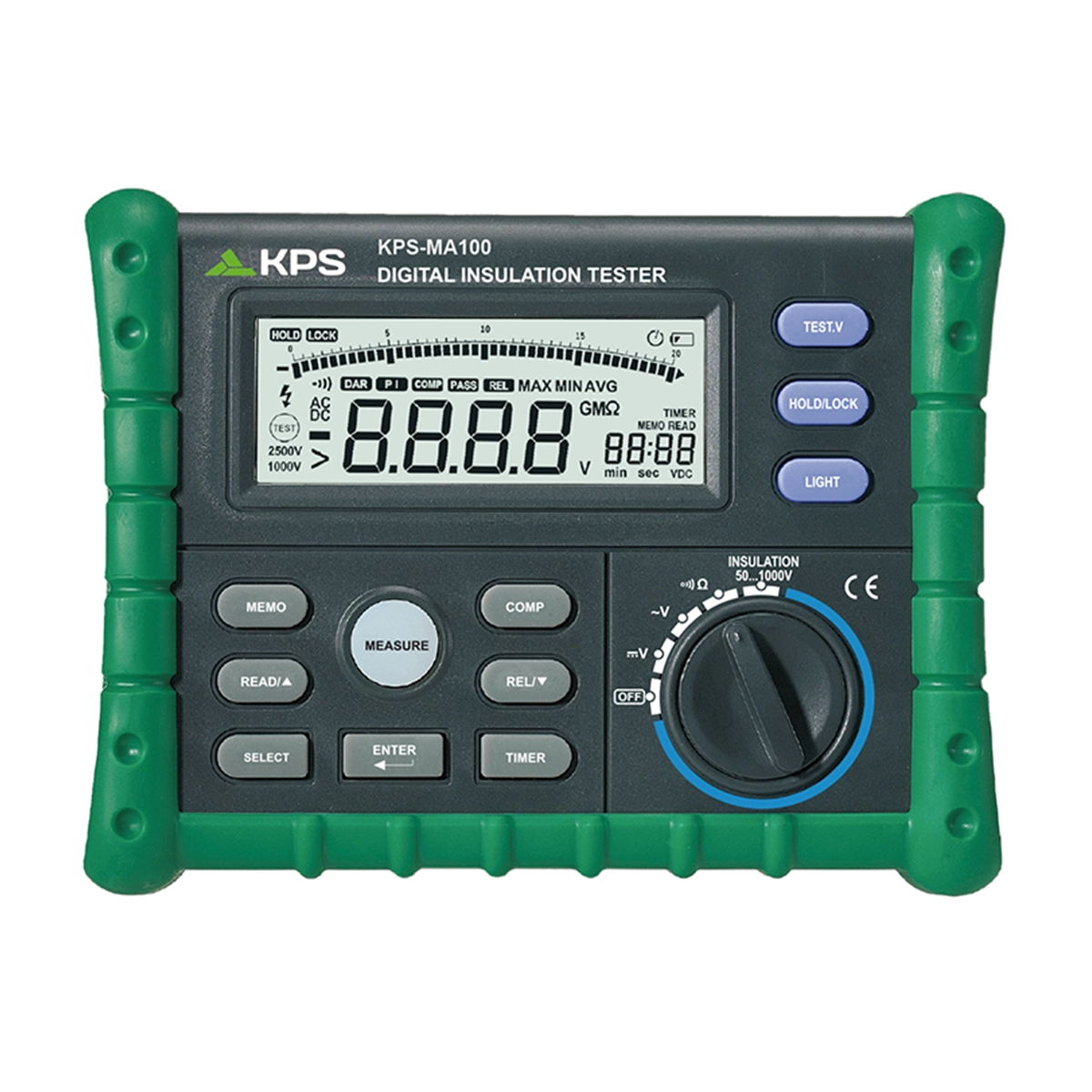

The MA100 is an Insulation Tester with the capability to test upto 1000V and measure upto 10GΩ. It can also perform DAR/PI calculations.
- Insulation tester (50V, 100V, 250V, 500V and 1000V)
- DAR/PI calculation
- Programmable timer
- MAX/MIN/AVG values. Relative measurement
- Compare function
- Data Register
- DC/AV voltage and resistance measurement
- Continuity test
- Auto-off display backlight and low battery display
- CAT III 1000V, CAT IV 600V according to EN 61010
Insulation Resistance | 10GΩ |
---|---|
AC Voltage (V) | 750V |
DC Voltage (V) | 1000V |
Resistance (Ω) | 200Ω |
Continuity Test | 200Ω |
Short Current | 1.8mA |
Maximum/minimum values | Yes |
Average value | Yes |
DAR/PI | Yes |
Auto OFF | Yes |
Backlight display | Yes |
Low battery display | Yes |
Category according to EN61010 | CAT III 1000V, CAT IV 600V |
