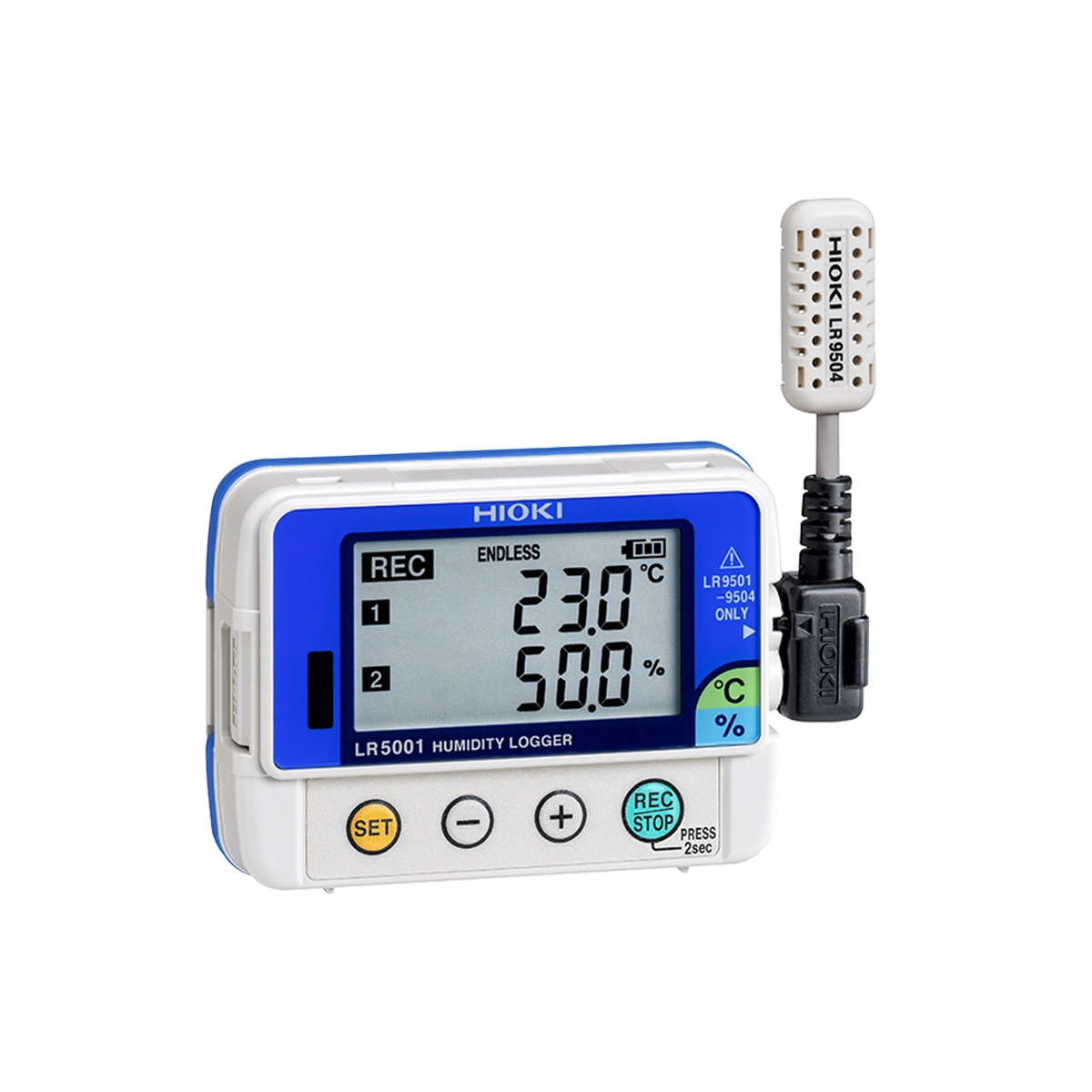

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5001 logs temperature and humidity over 2 channels in as fast as 1 second intervals.
| Measurement items | Temperature 1 ch and Humidity 1 ch (Requires included or optional humidity sensor) |
| Measurement range | Temperature: -40.0°C to 85.0°C, Humidity: 0 to 100% RH at sensor environment |
| Basic accuracy |
[Temperature]: ±0.5 °C (main unit + sensor accuracy, at 0.0 to 35.0 °C) [Humidity]: ±5 % RH (main unit + temperature/humidity sensor LR950x combination, at 20 to 30 °C / 10 to 50 % RH) Note: Basic accuracy is typical value, refer to the detailed catalog |
| Storage capacity | Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data |
| Recording interval | 1 to 30 sec., 1 to 60 min., 15 selections |
| Recording modes |
Instantaneous recording: at every recording interval Statistical value recording: Measure at one-second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval |
| Recording methods |
One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording) |
| Other functions |
Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low Note: After batteries are replaced within 30 seconds, recording resumes automatically (Recording is interrupted during battery replacement) |
| Waterproof and dust-proof | IP54 (EN60529) (with sensor connected, but not including sensor tip) |
| Interfaces | Infrared optical communications with LR5091, LR5092-20 |
| Power supply |
LR6 (AA) Alkaline battery × 1 Battery life: Approx. 2 years (Instantaneous recording, 1-minute interval, auto power saving at 20 °C), Approx. 2 months (Instantaneous recording, 1-second interval at 20 °C) |
| Dimensions and mass | 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz) |
| Included accessories |
LR6 (AA) Alkaline battery (built-in internal) × 1 Humidity Sensor LR9504 × 1 Instruction manual × 1 Operation guide × 1 Kickstand × 1 |
