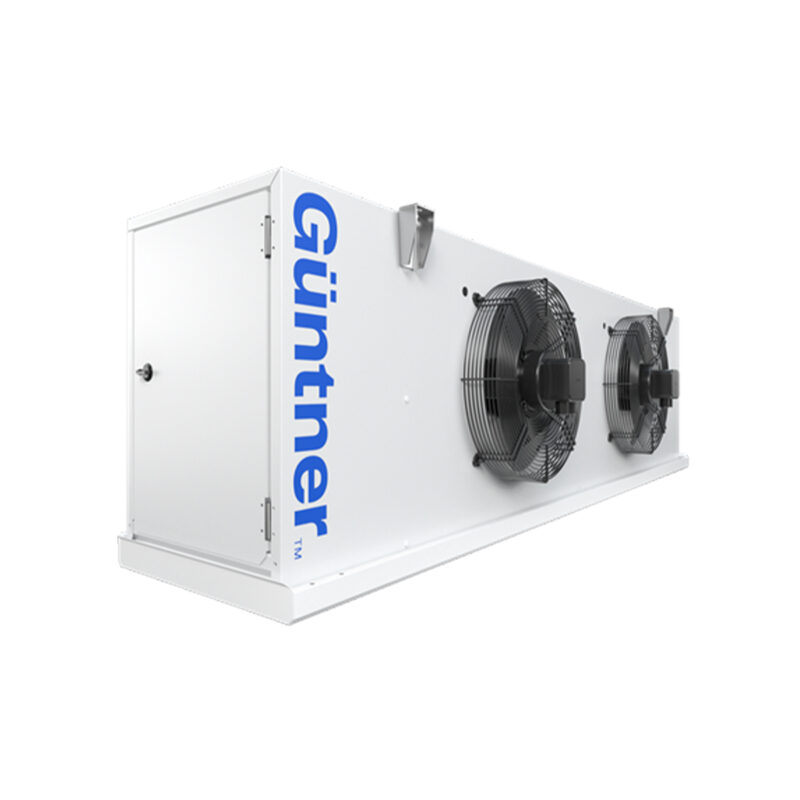

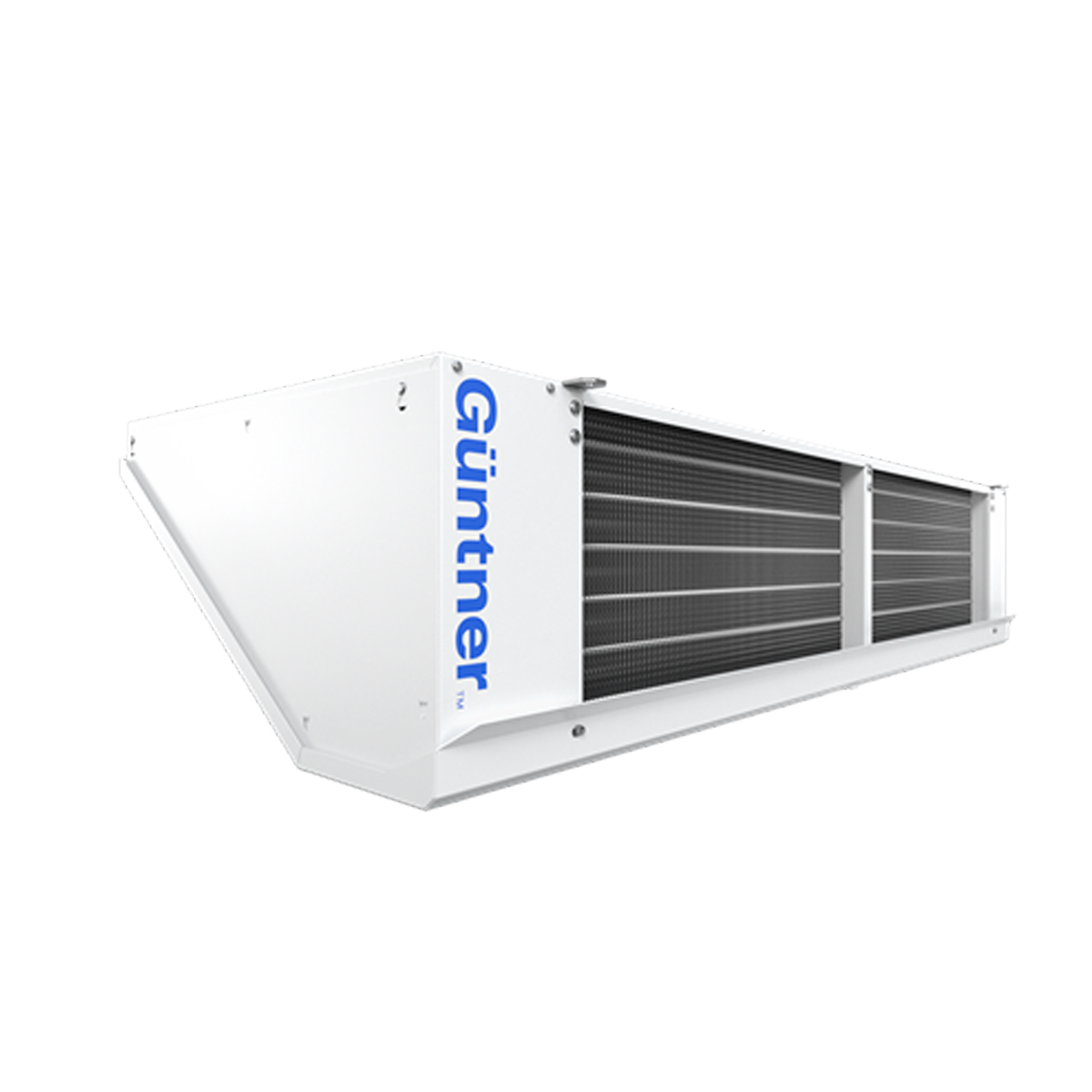

The GASC-series Slim Compact evaporator by Güntner is ideal for small and low-temperature cold stores, including hospitality and convenience applications. It ensures top-tier hygiene with a drip pan unit and inner pan that hinge down for easy cleaning and inspection. Built with food-safe materials, the design prioritizes cleanliness and ease of maintenance. The aluminum housing features an anti-corrosive powder coating, ensuring durability and performance. This evaporator combines space-saving design with energy-efficient operation, making it a reliable choice for compact refrigeration needs.
| Evaporator Type | Direct Expansion (DX) |
| Airflow | 1,566.00 m³ |
| Fan Quantity | 1 AC Fan (1~230V 50Hz) |
| Fan Diameter | 310 mm |
| Fan Speed | 1,300 min⁻¹ |
| Fan Power Consumption | 0.10 kW |
| Fan Current | 0.42 A |
| Noise Pressure Level | 42.00 dB(A) at 3.00 m |
| Noise Power Level | 64.00 dB(A) |
| Air Throw | Approx. 11 m |
| Energy Efficiency Class | Not relevant |
| Casing Material | AlMg, Powder-coated RAL 9003 |
| Tubes Material | Copper |
| Fins Material | Aluminium |
| Fin Spacing | 4.00 mm |
| Weight (Dry) | 16 kg |
| Max Operating Pressure | 32.00 bar |
| Inlet & Outlet Connection | Inlet: 16 × 1.00 mm, Outlet: 18 × 1.00 mm |
| Drain Connection | G¾" (DIN ISO 228-1 with G-thread) |
| Accessories | Wiring to terminal box; Electric defrost (230V, 0.95kW) |
| Dimensions (L x W x H) | 964 mm × 580 mm × 337 mm |
