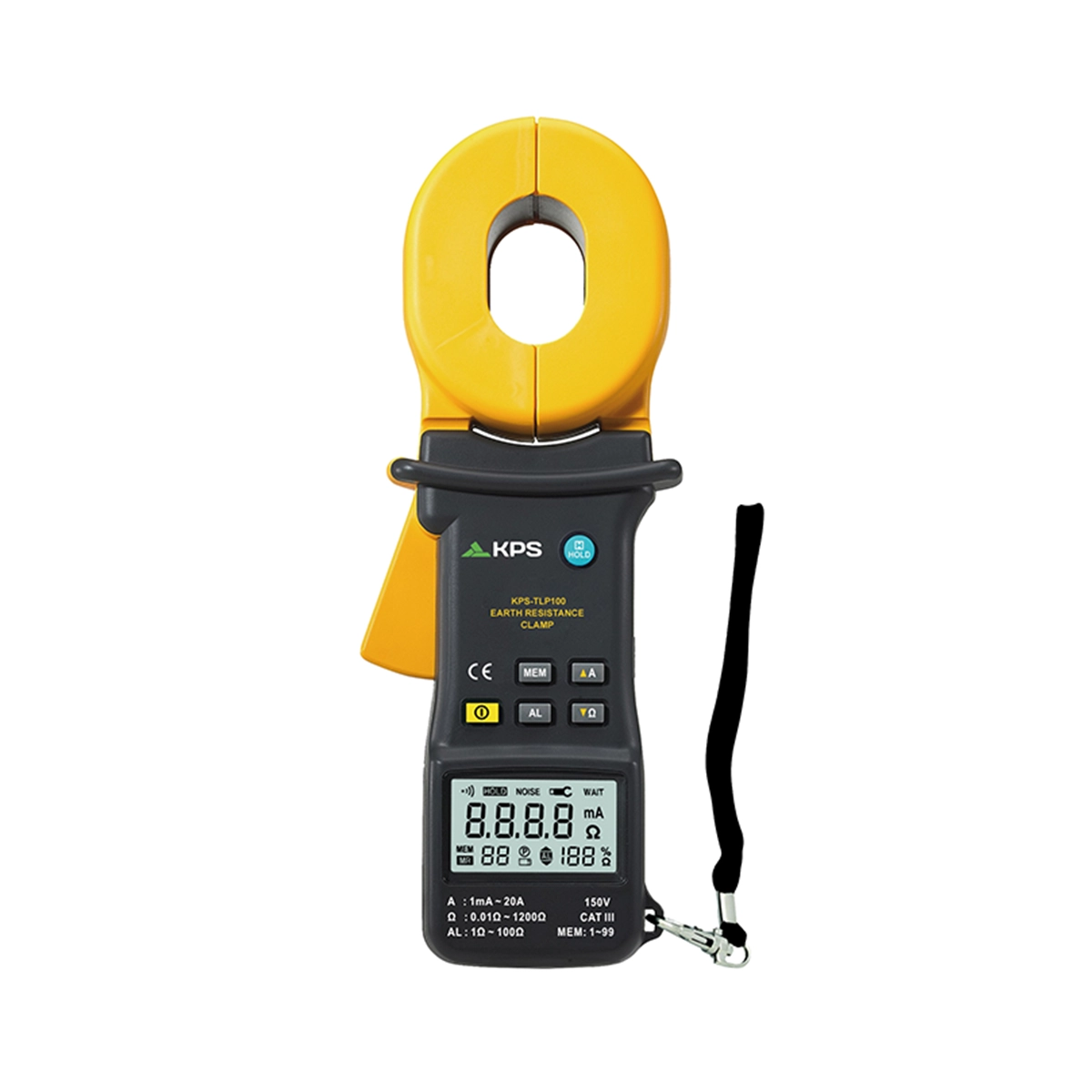

The TLP100 is the Earth resistance and leakage current tester that measures the earth resistance safely and easily by clamping the ground line and working as per CAT III 150V according to EN61010.
- Earth resistance and leakage current tester.
- Measuring the earth resistance safely and easily by clamping the ground line.
- Setting alarm threshold.
- Data hold and data register.
- Auto range and low battery display
- CAT III 150V according to EN 61010
Power Supply | 2x9V 6F22 batteries (included) |
---|---|
Earth Resistance | 1200Ω |
Maximum/minimum values | Yes |
Average value | Yes |
Data register | Yes |
Counts | 10000 |
Data hold | Yes |
Auto OFF | Yes |
0Ω adjustment | Yes |
Low battery display | Yes |
Category according to EN61010 | CAT III 150V |
