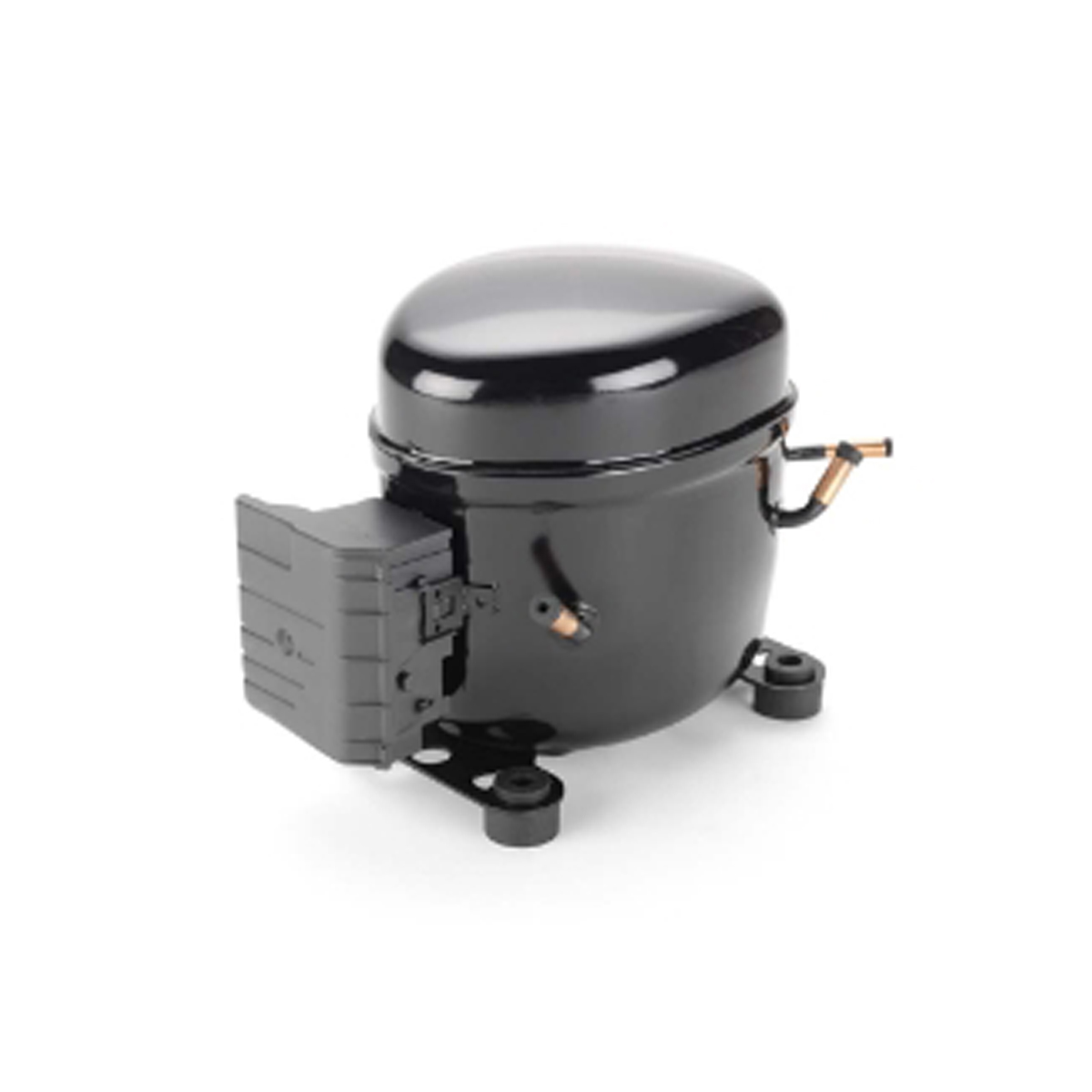

The AE4440Y-GS1A compressor is part of Tecumseh’s line of AE series compressors, known for their compact size, efficiency, and versatility. This model is widely used in low- and medium-temperature commercial refrigeration, suitable for smaller applications such as refrigerated display cases, beverage coolers, and under-counter refrigerators.
- High Efficiency: Designed for optimized energy usage.
- Reliability and Durability: Constructed with robust components, this compressor is built for long-lasting performance under continuous and demanding use, ensuring minimal downtime
- Compact and Versatile Design: Its compact structure allows for easy installation in tight spaces, making it adaptable for a variety of applications like walk-in coolers, display cases, and more.
- Low Noise Operation: Engineered to reduce noise during operation, making it a preferred choice for commercial environments where quiet operation is valued.
- Thermal Protection: Equipped with built-in thermal protection to prevent overheating, which enhances safety and extends compressor life
- Environmentally Friendly: With refrigerant compatibility and efficiency features, it contributes to lower environmental impact in commercial refrigeration.
Motor Torque | High Start Torque (HST) |
---|---|
Evaporating Range | -15°C to 15°C (5°F to 59°F) |
Displacement (CC) | 10.33 |
Compressor Cooling | Fan |
Oil Charge | 366.3 cc |
Oil Type | Polyolester |
Viscosity | 32 |
LRA | 16 |
Motor Type | CSIR |
MCC | 4.54 |
Motor Resistance - Main | 5.527 |
Motor Resistance - Start | 11.226 |
RLA (50Hz) | 3.08 |
RLA (60Hz) | 2.99 |
Voltage Frequency | 50Hz~60Hz |
Voltage Range (50Hz) | 180 to 242 |
Voltage Range (60Hz) | 187 to 242 |
Length | 251 MM |
Height | 207.1 MM |
Width | 160.5 MM |
Weight | 10KG |
Suction Tube | 6.35 (1/4") |
Discharge Tube | 4.76 (3/16") |
Process Tube | 6.35 (1/4") |
