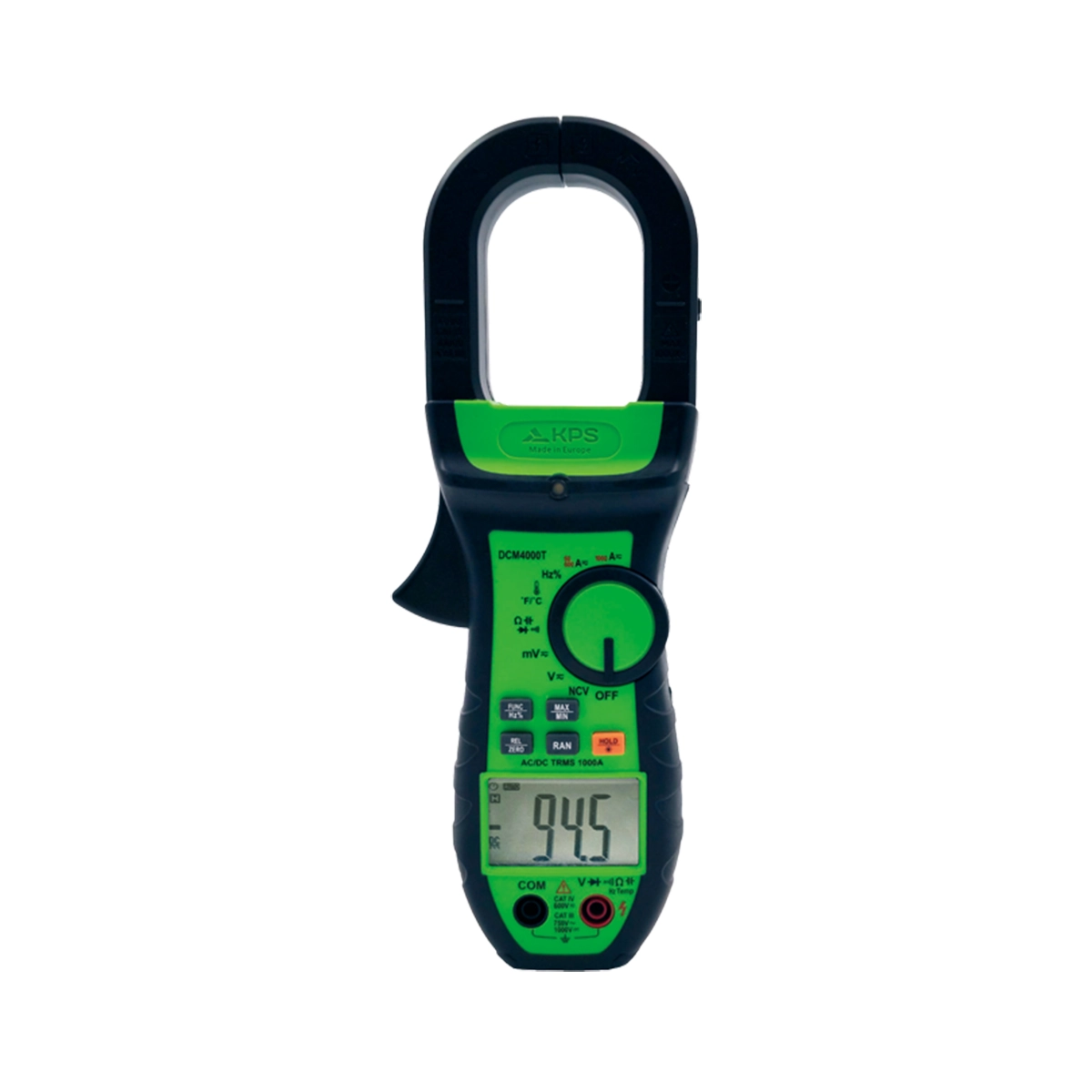

A True RMS Clamp Meter, the DCM4000T is the perfect tool for professionals dedicated to Low Voltage applications and maintenance of electrical installations in the industrial or tertiary sector with a measurement capacity up to 1000A AC/DC
- AC/DC Voltage, AC/DC current and resistance, frequency, capacitance and temperature measurements.
- True Root Mean Square (TRMS) measurement.
- Continuity buzzer and diode test
- Non-contact voltage detection.
- Autoranging, Auto-off, display backlight and low battery display
- CAT IV 600V according to EN 61010
- 6,000 counts
- Max/min functions
- Relative function
- Data Hold & Data logging: 100 groups
- RS232 Communication
Altern current, up to | 1000A AC |
---|---|
Direct current, up to | 1000A DC |
Altern voltage, up to | 750V |
Direct voltage, up to | 1000V |
Continuity test | Yes |
Diode Check | Yes |
Non-Contact Voltage Detection | Yes |
Counts | 6000 |
True RMS Measurement | Yes |
Relative Measurements | Yes |
MAX/MIN values | Yes |
Autoranging | Yes |
Jaw Size | 40mm, 1.6” |
Auto OFF | Yes |
Low Battery Display | Yes |
Category according to EN61010 | CAT IV 600V |
