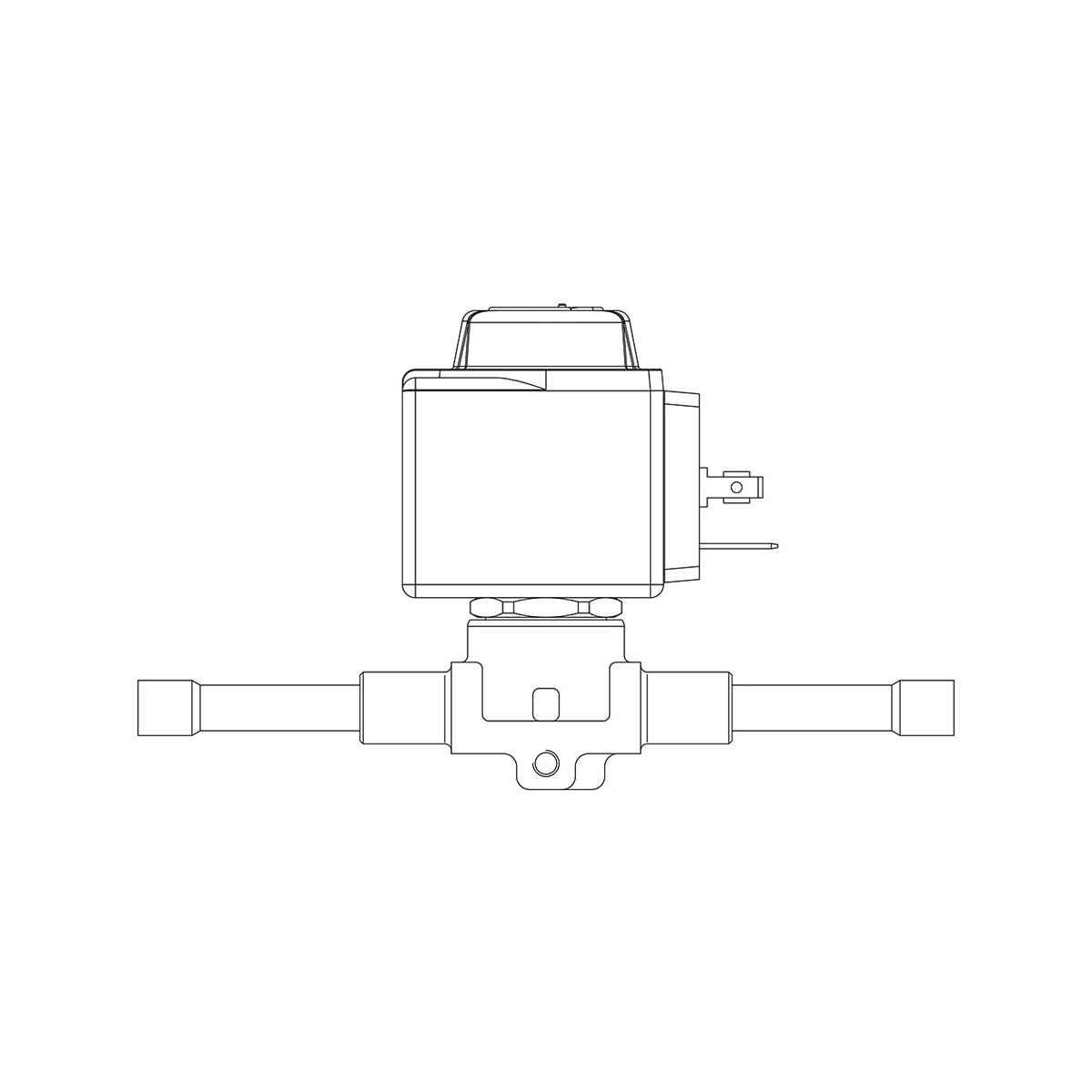

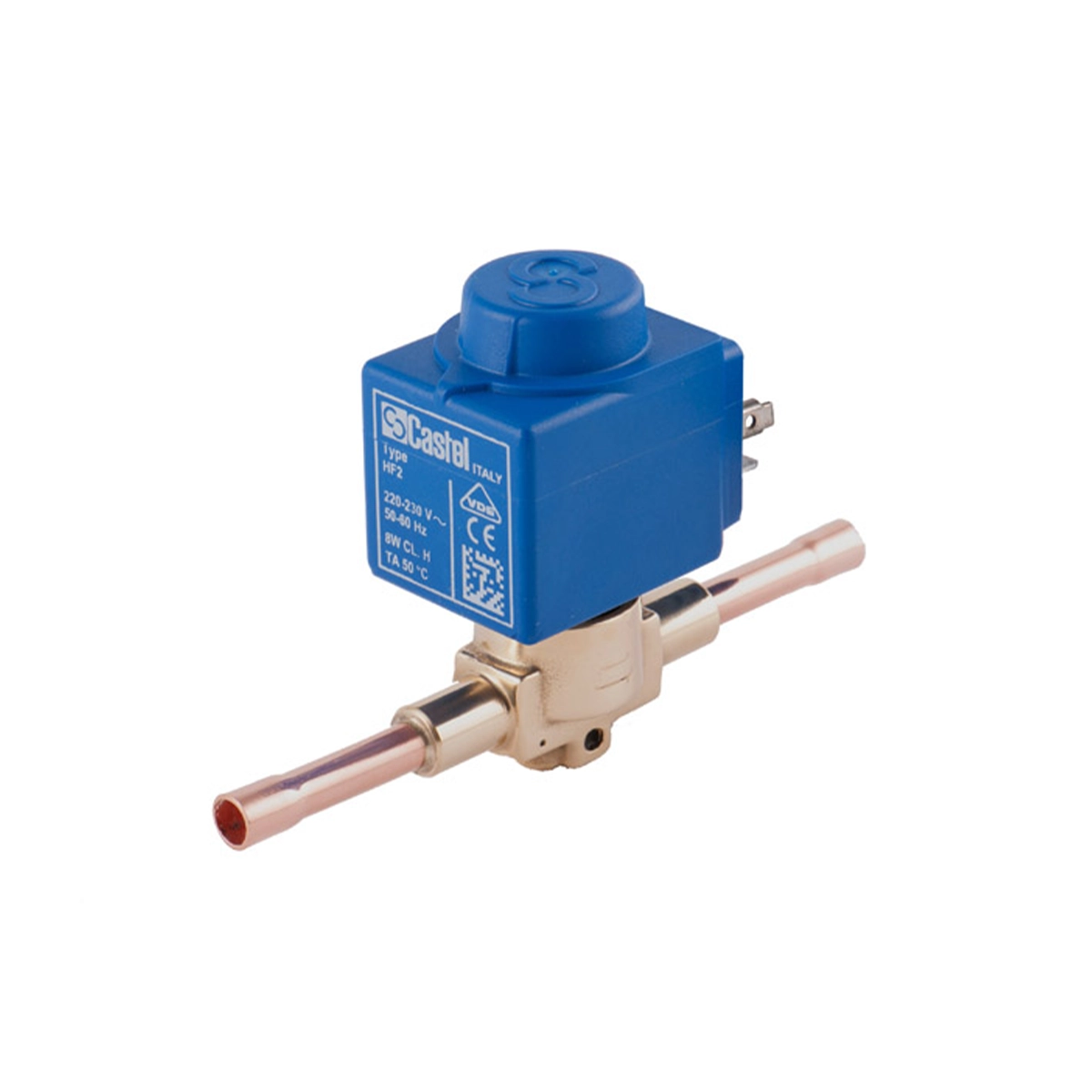

The Castel solenoid valve 1028/2A6 is a diaphragm pilot-operated valve suitable for various refrigerants, including HCFCs, HFCs, and HFOs. It features a 1/4" Solder connection, a maximum working pressure of 45 bar, and an operating temperature range of -35°C to +110°C. The valve is compatible with 220-230V coils (A6 suffix) and has a flow coefficient (Kv) of 0.15 m³/h.
- Diaphragm pilot operation for efficient functioning.
- High-pressure resistance with a working limit up to 45 bar.
- Versatile compatibility with various refrigerants.
- Wide operating temperature range from -35°C to +110°C.
- Ease of installation via SAE flare or solder connections.
- Electrical flexibility with different voltage coil options
Operating Principle | Diaphragm Pilot Operated |
---|---|
Coil Type | HF2 |
Connections | Solder 1/4" |
Kv [m³/h] | 0.15 |
PS [bar] | 45 |
TS [°C] (min.) | -35 |
TS [°C] (max.) | 110 |
Package | 24 pcs |
