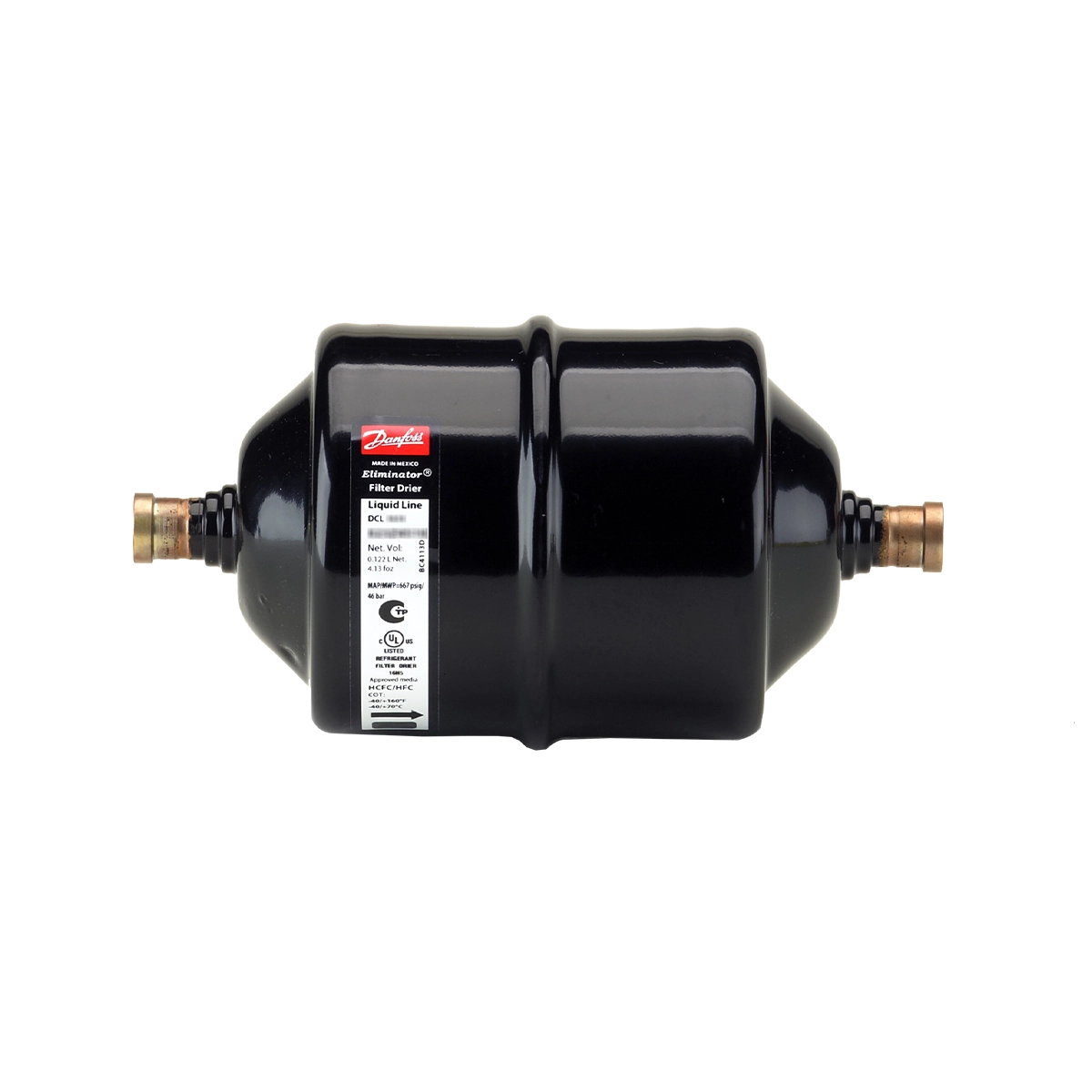

All eliminator driers have a solid core with binding material held to an absolute minimum. There are two types of eliminator cores. Type DML/DMLE driers have a core composition of 100% Molecular Sieve, while type DCL/DCLE contain 80% Molecular Sieve with 20% activated alumina. Eliminator type DML/DMLE driers are designed for applications requiring the highest moisture capacity. Eliminator type DML/DMLE driers are designed for applications requiring high moisture capacity and acid adsorption capacity. Available with solder (cu-plated steel connectors) and are connections.
- The Core type DML/DMLE
- 100% Molecular Sieve core
- High drying capacity minimizing the risk of acid formation (hydrolysis) The Core type DCL/DCLE
- 80% Molecular Sieve with 20% activated alumina
- Perfect core blend for systems that operate at high condensing temperatures and require high drying capacity
- DML and DCL are PED approved for PS 46 bar
- DMLE and DCLE are PED approved for PS 50 bar
- Available with solder (Cu-plated steel connectors) and are connections
- Corrosion resistant powder-painted finish. Special coating for marine applications available upon request
- Allows installation with any orientation provided the arrow is in the flow direction
- Available in sizes 1.5 – 75 cubic inches
- The filter provides high retention with minimal pressure drop
- Thermally stable up to 120 °C
